Introduction
The Trenz Electronic teCORE™ IP "EFUSE_USER" is designed to provide simple access to Xilinx EFUSE_USR Primitive from Vivado IPI This IP Core is only a IP Wrapper around the primitive.
| teCORE™ IP Facts Table | |
|---|---|
| Supported Device Family | Zynq® -7000, 7 Series, UltraScale, UltraScale+ |
| Supported User Interfaces | AXI4-Stream |
| Resources | EFUSE_USR |
| Provided with Core | |
| Documentation | Product Guide |
| Design Files | VHDL Source Code |
| Tested Design Flows | |
| Design Entry | Vivado® Design Suite, IP Integrator |
| Simulation | Vivado Simulator |
| Synthesis | Vivado Synthesis |
| Support | |
| Provided by Trenz Electronic GmbH | |
Overview
Feature Summary
- Wrapper for EFUSE_USR Primitive
- AXI4-Stream master for output or
- Direct 32 bit output port
Applications
- Data acquisition
Licensing
This Trenz Electronic teCORE™ is licensed under MIT License.
Product Specification
Performance
The following sections detail the performance of the core.
Maximum Frequencies
Maximum Frequency is not applicable as this core provide only static output values.
Latency
Latency is not applicable as this core provide only static output values.
Throughput
Throughput is not applicable as this core provide only static output values.
Resource Utilization
This core does not use any dedicated I/O or CLK resources.
| LUTs | FFs | EFUSE_USR |
|---|---|---|
| 0 | 0 | 1 |
Use Cases
The EFUSE_USR IP Core can be used with Zynq PS or MicroBlaze or MicroBlaze MCS.
MicroBlaze MCS

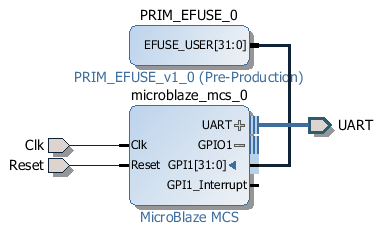

EFUSE value can be read from MCS Input port.
MicroBlaze AXI4-Stream

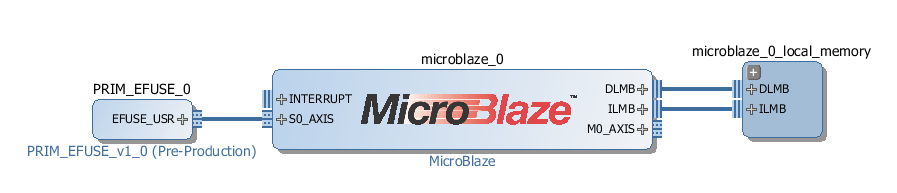

EFUSE value can be read using MicroBlaze special instructions.
