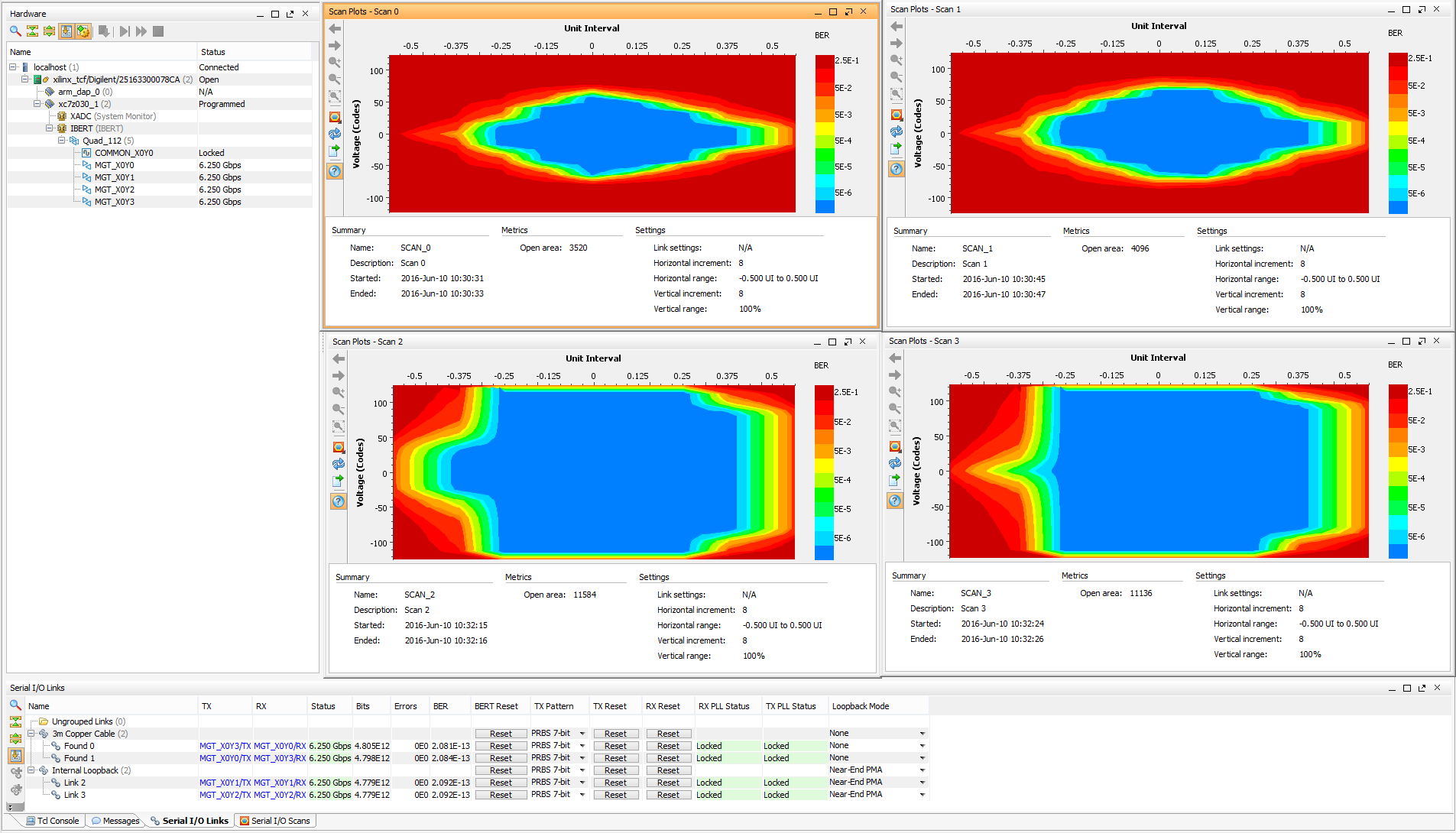

IBERT generated with standard settings, 6.25Gbit lane rate.
MGT_X0Y0 and MGT_X0Y3 connected together with 3m copper cable (Eye Scan 0 and 1).
MGT_X0Y1 and MGT_X0Y2 with Near-End PMA loopback (Eye Scan 2 and 3).
