| Company | Trenz Electronic GmbH |
|---|---|
| PCN Number | PCN-20190311 |
| Title | TE0725LP-01 SPI Flash Change |
| Subject | BOM change |
| Issue Date | 20190311 |
Products Affected
This change affects all TE0725LP modules of revision 01: TE0725LP-01
affected product | suggested replacement |
|---|---|
TE0725LP-01-100-2C | TE0725LP-01-72C-1 |
| TE0725LP-01-100-2D | TE0725LP-01-72C-1T |
| TE0725LP-01-100-2L | TE0725LP-01-72C-1U |
Changes
#1 Change SPI Flash from N25Q256A11E1240E to MT25QU512ABB8E12-0SIT
Type: BOM change
Reason: N25Q256A11E1240E became obsolete.
Impact: Size changed from 256 MBit to 512 MBit. JEDEC ID changed from BB19h to BB20h both with manufacturer ID: 20h.
Method of Identification

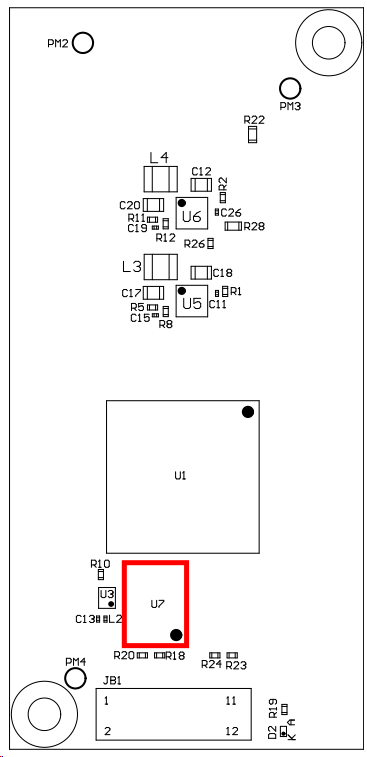

Locate Flash (U7) on backside of PCB:
| old | new |
|---|---|
N25Q256A11E1240E | MT25QU512ABB8E12-0SIT |
|
|
Production Shipment Schedule
From March 2019, after old stock is gone.
Contact Information
If you have any questions related to this PCN, please contact Trenz Electronic's Technical Support at
- forum.trenz-electronic.de
- wiki.trenz-electronic.de
- support%trenz-electronic.de (subject = PCN-20190311)
phone
national calls: 05223 65301-0
international calls: 0049 5223 65301-0
Disclaimer
Any projected dates in this PCN are based on the most current product information at the time this PCN is being
issued, but they may change due to unforeseen circumstances. For the latest schedule and any other information,
please contact your local Trenz Electronic sales office, technical support or local distributor.
