General
- The aim of this test is the validation of TE0422 for 10GBs suitability
- The following components were selected as test set
- Carrier board: TEBF0818-02
- Module board: TE0818-01-9GI21-A
- SFP 2 SMA Adapter:
- TE0422-02 with SMA cable CCSMA-MM-086-8 (MGT_X1Y14) in loopback (TD- → RD-, TD+ → RD+)
- TE0422-02 with SMA cable CCSMA-MM-086-12 (MGT_X1Y15) in loopback (TD- → RD-, TD+ → RD+)
- TE0422-02 with SMA cable CCSMA-MM-086-8 (MGT_X1Y14) in loopback (TD- → RD-, TD+ → RD+)
- Design:
- Modified Reference Design for TE0818
- Including IBERT IP core 'Ibert_ultrascale_gth_0' for MGT measurements
Results
- MGT_X1Y14:
- TE0422-02 with CCSMA-MM-086-8
- TE0422-02 with CCSMA-MM-086-8
- MGT_X1Y15:
- TE0422-02 with CCSMA-MM-086-12

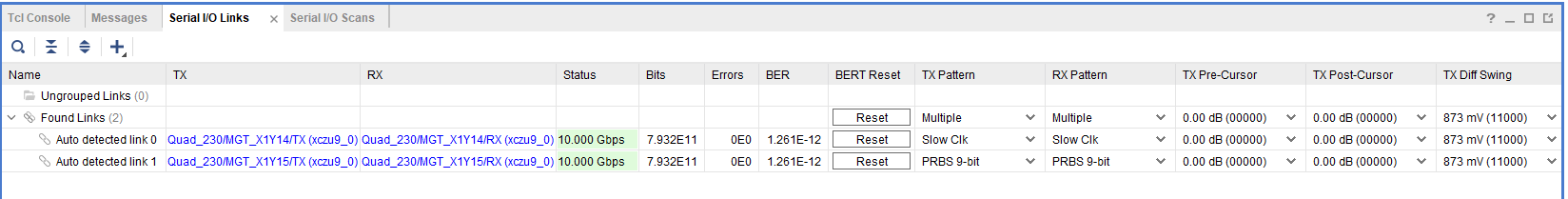

- Adjustments on Serial I/O Link
- TX Pre-Cursor: 0.00 dB (00000)
- TX Post Cursor: 0.00 dB (00000)
- TX Diff Swing: 873mV (11000)
- The results were taken after waiting at least 5 minutes in each case
| TX/RX Pattern | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MGT_X1Y14 | Slow Clock | Fast Clock | 31bit | 23bit | 15bit | 9bit | |||||||||||||||
| MGT_X1Y15 | 7bit | 9bit | 15bit | 23bit | 31bit | Fast Clock | 7bit | 9bit | 15bit | 23bit | 31bit | 7bit | 9bit | 15bit | 23bit | 7bit | 9bit | 15bit | 7bit | 9bit | 7bit |
| Status (for both) | 10 Gbps | 10 Gbps | 10 Gbps | 10 Gbps | 10 Gbps | 10 Gbps | |||||||||||||||
| Errors (for both) | 0 | 0 | 0 | 0 | 0 | 0 | |||||||||||||||
2d full eye diagrams

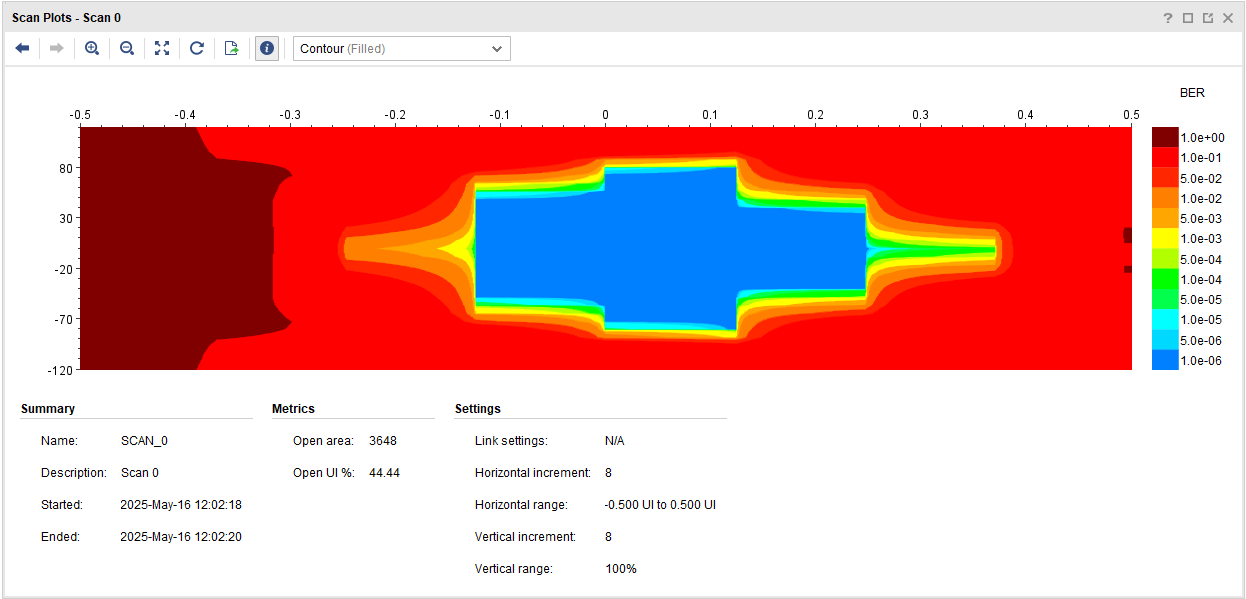

MGT_X1Y14 - Fast Clk

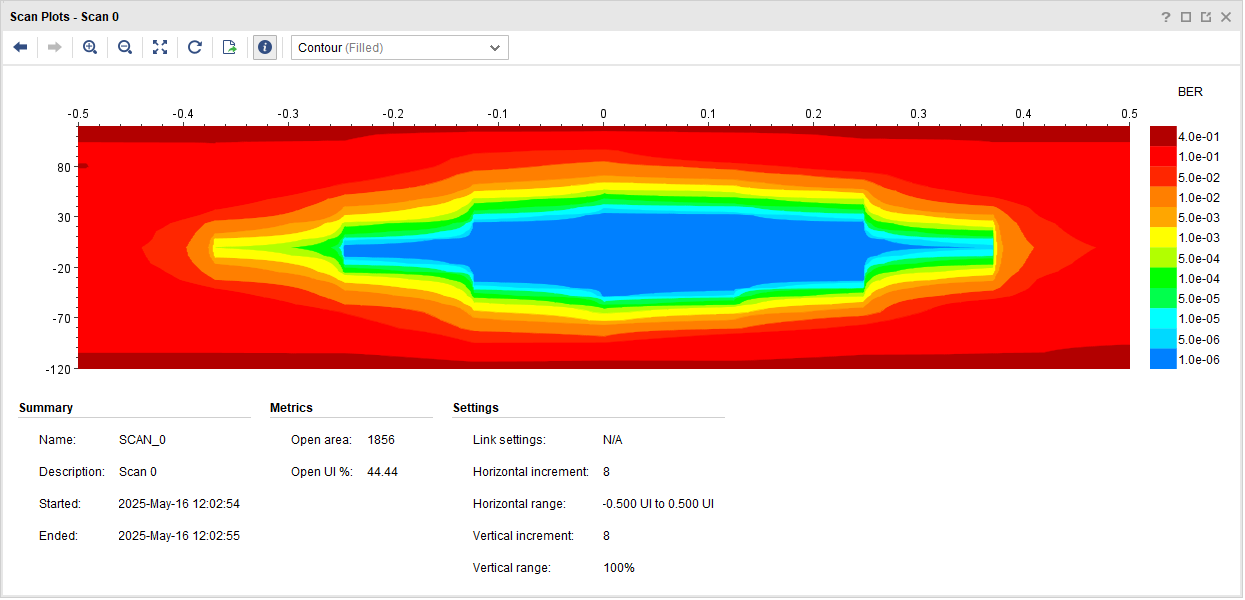

MGT_X1Y15 - 31 bit
