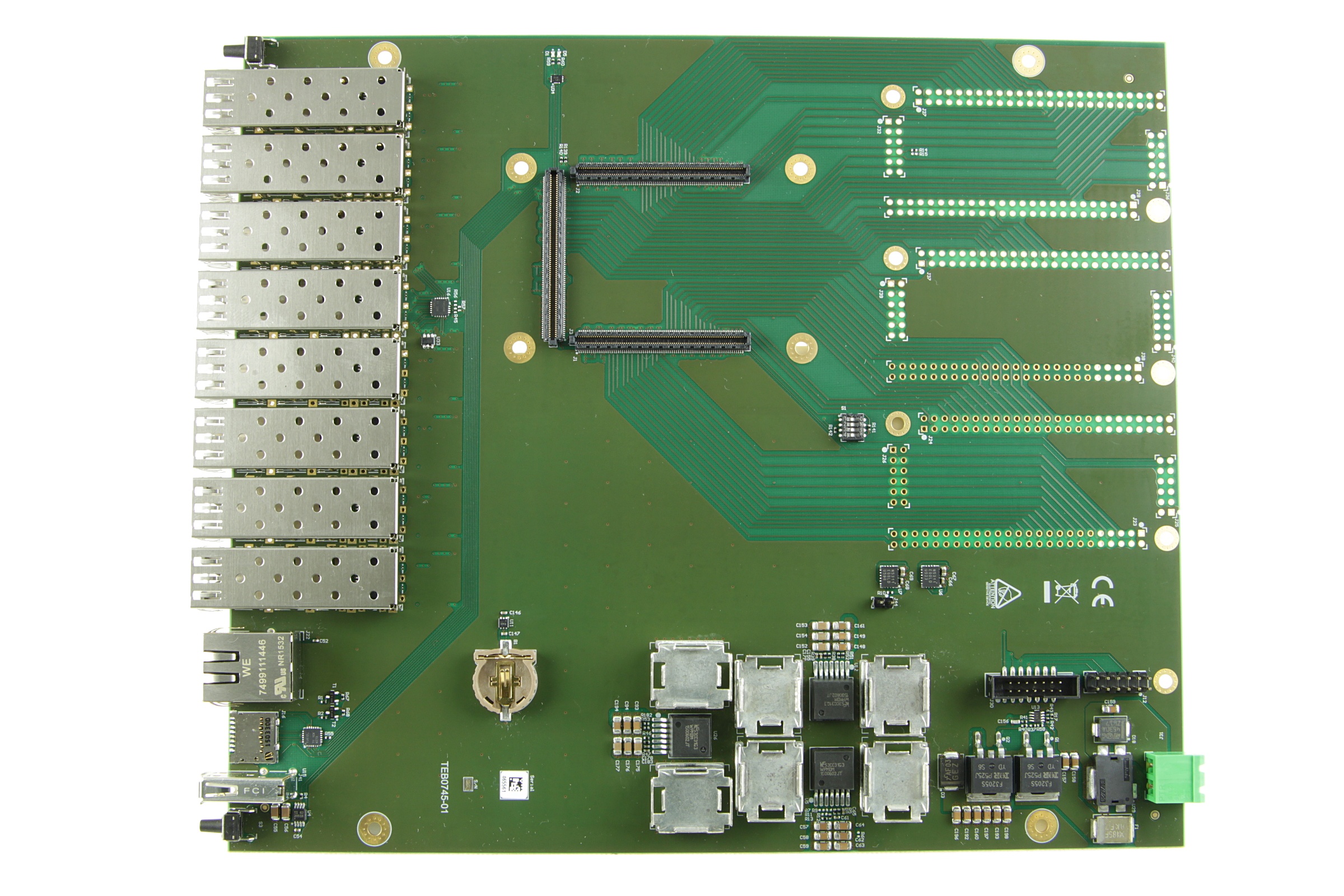

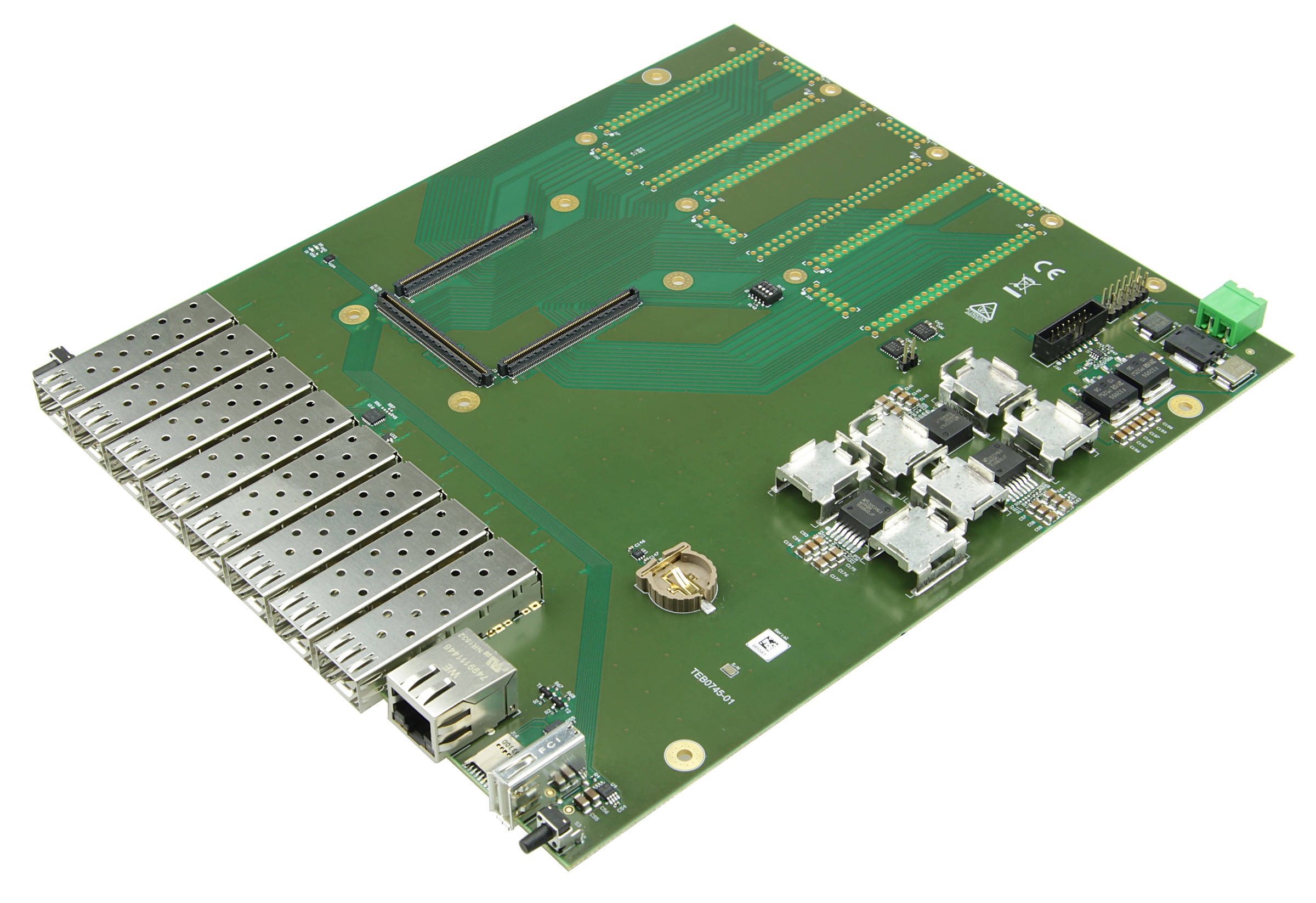

Key Features
- Form factor 20 cm x 23,1 cm
- Trenz TE0745 Module Socket (3 x Samtec connectors)
- 24V power supply over ARKZ950/2 connecting terminal
- 1 x EMI Network Filter
- 3 x Variable Step Down Regulator Module (VDRM) with head sink
- 2 x Synchronous Buck Regulator
- 1 x XMOD (TE0790) Pin Header (JTAG / UART)
- 1 x Pin Header (JTAG)
- 1 x microSD connector
- 1 x RJ45 Ethernet connector
- 1 x USB Host Connector
- 8 x SFP-Connector
- 6 x Pin Header 50 pol. (FPGA Bank I/O's and Power)
- 6 x Pin Header 12 pol. (FPGA Bank I/O's and Power)
- 1 x battery holder
- 2 x DIP Switch Array (VCC_HR_B / Modi)
- 2 x Button (User / Reset)
- 2 x LED (Green)
Power supply

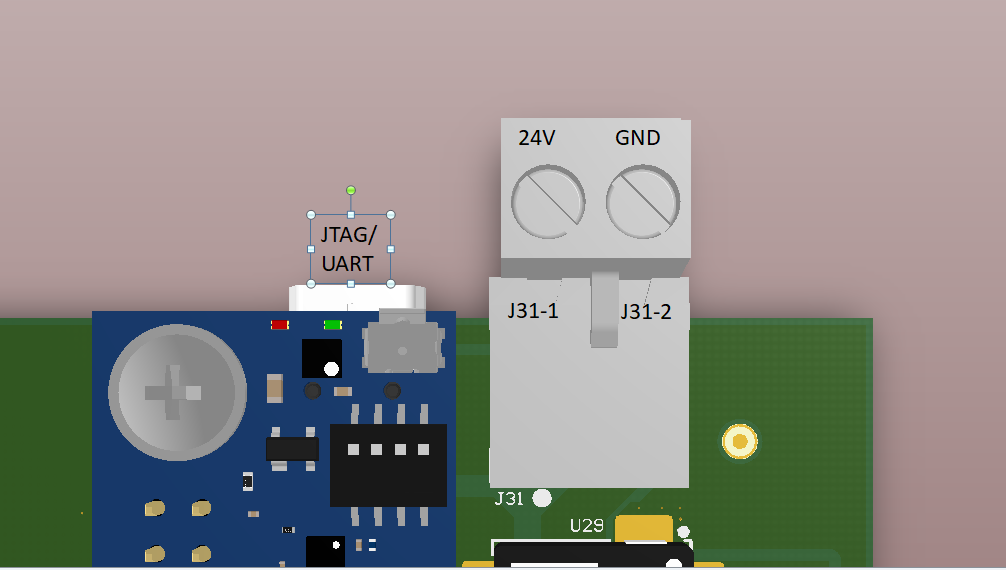

24V on J31:
- J31-1: 24V
- J31-2: GND
TE0790(XMOD) SwitchSettings
| DIP | Value |
|---|---|
| S2-1 | ON |
| S2-2 | OFF |
| S2-3 | OFF |
| S2-4 | ON |
TEB0745 DIP Switch and Button Settings
S4 set HR-Bank Power.
| S4-1 | S4-2 | S4-3 | S4-4 | Power VCC_HR_B |
|---|---|---|---|---|
| OFF | OFF | OFF | N.C. | 1,8V |
| OFF | OFF | ON | N.C. | 1,5V |
| OFF | ON | OFF | N.C. | 3,3V |
| OFF | ON | ON | N.C. | 2,5V |
| ON | OFF | OFF | N.C. | 0,8V |
| ON | OFF | ON | N.C. | Do not use |
| ON | ON | OFF | N.C. | 1,25V |
| ON | ON | ON | N.C. | 1,2V |
S1 for Modi and PS User switch.
| ON | OFF | |
|---|---|---|
| S1-1 | Boot Mode SD | Boot Mode Flash |
| S1-2 | Module CPLD in Chain | Module FPGA in Chain |
| S1-3 | N.C. | N.C. |
| S1-4 | User Switch to MIO12 | User Switch to MIO12 |
S2 Button: User Reset
S3 Button: User Button to MIO50
