JTAG signals are available at:

  • gender-inverted standard 6-pin JTAG header connector J2;
  • B2B connector J4.

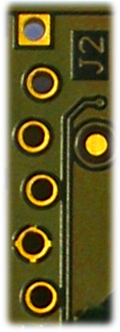

JTAG Header Connector J2

The offset holes of header J2 allow a removable press fit of standard 0.100 inch header pins to connect flying leads without any soldering necessary.

JTAG signals are available on the dedicated header J2 through a JTAG programmer with flying leads as described in the table below.

TMS

TDI
TDO
TCK
GND
Vref (3.3 V)
JTAG header (J2).

To connect your computer to JTAG connector J2, you typically need

  • a JTAG cable with standard 6-pin JTAG female header;
  • a 2.54 mm pitch 1 × 6 pin gender changer header.

Some examples of JTAG cable set are listed in the table below.

JTAG cable

flying leads

software

gender changer

Xilinx Platform Cable USB

included

Xilinx iMPACT

1 × 6 pin

Digilent XUP USB-JTAG Programming Cable

XUP Fly Wire Assembly

Xilinx iMPACT

1 × 6 pin

Digilent JTAG-USB Full Speed Module

included

Xilinx iMPACT
Digilent Adept 2.0

1 × 6 pin

JTAG HS1 Programming Cablenot neededXilinx iMPACT
Digilent Adept 2.0		not needed
JTAG HS1 Programming Cablenot neededXilinx iMPACT
Digilent Adept 2.0		not needed
Some examples of JTAG cable set.

Figure below shows a standard 6-pin JTAG female header, in this case flying leads, with a gender changer header.

Standard 6-pin JTAG female header with gender changer.

The JTAG is ideal for quick configuration and effective debugging.

JTAG lines at B2B connector J4

JTAG signal lines are also available at B2B connector JM4 (pins 70, 72, 74, 76, 78 and 80). See the corresponding pin-out table for additional information on these signals.
