TE0320 is provided with 2 user buttons. A signal listed in the table below is set low (logical 0) when a push button is pressed, and vice-versa.
switch | signal | FPGA ball | FPGA pin | bank | default input | input when pressed |
S3 | PB1 | U23 | IO_L23P_1 | 1 | logical 1 | logical 0 |
S4 | PB2 | R22 | IO_L25N_1 | 1 | logical 1 | logical 0 |
User push-buttons signal details.

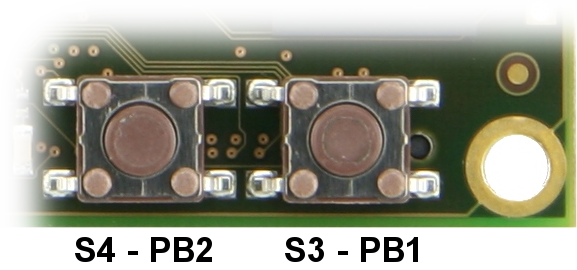

Push buttons PB1 and PB2.
On some boards, PB1 and PB2 labels might be exchanged.Please take Figure above as reference.
