| Company | Trenz Electronic GmbH |
|---|---|
| PCN Number | PCN-20251114 |
| Title | TE0630-03 DDR3L RAM Update |
| Subject | BOM Change |
| Issue Date | 2026-09-25 |
Products Affected
This change affects all Trenz Electronic TE0630 SoMs: TE0630-03*.
Affected Product | Replacement |
|---|---|
| TE0630-03-52I12-A | TE0630-03-52I22-A |
| TE0630-03-63I12-A | TE0630-03-63I22-A |
| TE0630-03-82I12-A | TE0630-03-82I22-A |
Changes
#1 Changed DDR3L RAM (U12) from NT5CC64M16GP-DII (128 MByte) to IS43TR16256BL-125KBLI (512 MByte).
Type: BOM Change
Reason: BOM Optimization.
Impact: With increased memory size also static and dynamic (usage dependent) power consumption is increased. If relevant for your application, please compare IDD current values of corresponding memory datasheets. New DDR timings may be considered in designs. For setup adaption refer to TE0630 DDR3 Memory Setup.
Method of Identification

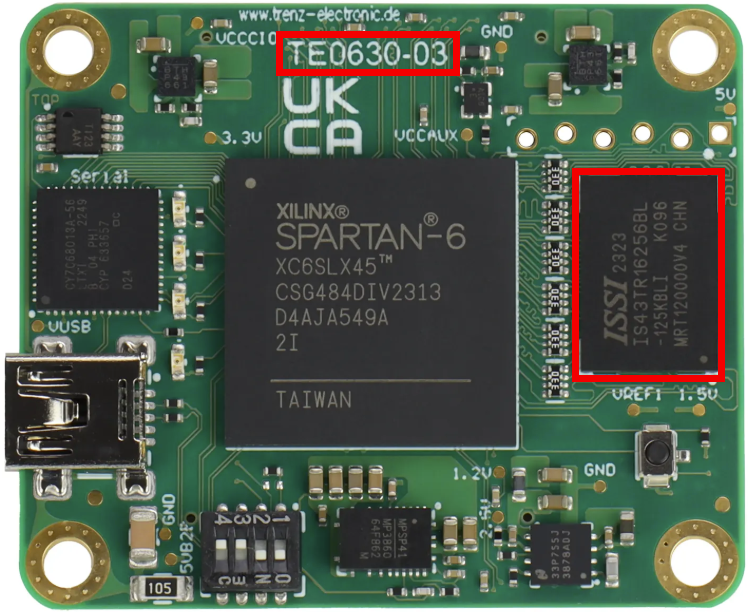

Locate DDR3L RAM (U12) on top side of the TE0630-03 PCB:
| old | new |
|---|---|
NT5CC64M16GP-DII | IS43TR16256BL-125KBLI |
|
|
Production Shipment Schedule
All variants with old and new memories are available. It is planned to change from old memory (NT5CC64M16GP-DII) to new memory (IS43TR16256BL-125KBLI) in future.
Contact Information
If you have any questions related to this PCN, please contact Trenz Electronics Technical Support at
- forum.trenz-electronic.de
- wiki.trenz-electronic.de
- support%trenz-electronic.de (subject = PCN-20251114)
phone
national calls: 05741 3200-0
international calls: 0049 5741 3200-0
Disclaimer
Any projected dates in this PCN are based on the most current product information at the time this PCN is being issued, but they may change due to unforeseen circumstances. For the latest schedule and any other information, please contact your local Trenz Electronic sales office, technical support or local distributor.
This PCN follows JEDEC Standard J-STD-046.
