Trenz Electronic TE0630 series are industrial-grade FPGA micro-modules integrating a leading-edge Xilinx Spartan-6 FPGA, a mini-USB 2.0 device port, 1 Gbit (128-Mbyte) DDR3 SDRAM with 16-bit width, 8 Mbyte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/Os are provided via rugged high-speed stacking connectors. TE0630 is fully mechanically and largely electrically backward compatible with Trenz Electronic TE0300 Xilinx Spartan-3E FPGA micro-modules.

All this on a tiny footprint, smaller than a credit card, at the most competitive price. Hardware and software development environment as well as reference designs are available free of charge.

Recommended Hardware

  • Trenz Electronic TE0303 carrier board
    or
    Trenz Electronic TE0304 demo board
  • JTAG programming cable

Recommended Software

  • Trenz Electronic TE0630 LX45: Xilinx ISE WebPACK (free license)
  • Trenz Electronic TE0630 LX75: Xilinx ISE WebPACK (free license)
  • Trenz Electronic TE0630 LX100: Xilinx ISE Design Suite (you need to buy a license)
  • Trenz Electronic TE0630 LX150: Xilinx ISE Design Suite (you need to buy a license)
  • To use Trenz Electronic reference designs, you need one of the following Xilinx software licenses:
    • Xilinx WebPACK + EDK (Embedded Development Kit) stand-alone (TE0630 LX45 and LX75 only)
    • Xilinx ISE Design Suite - Embedded Edition
    • Xilinx ISE Design Suite - System Edition

You can find all Xilinx ISE versions here.

Sample Applications

  • Cryptographic hardware module
  • Digital signal processing
  • Embedded educational platform
  • Embedded industrial OEM platform
  • Embedded system design
  • Emulation platforms
  • FPGA graphics
  • Image processing
  • IP (intellectual property) cores
  • Low-power design
  • Parallel processing
  • Rapid prototyping
  • Reconfigurable computing
  • System-on-Chip (SoC) development


TE0630, top view

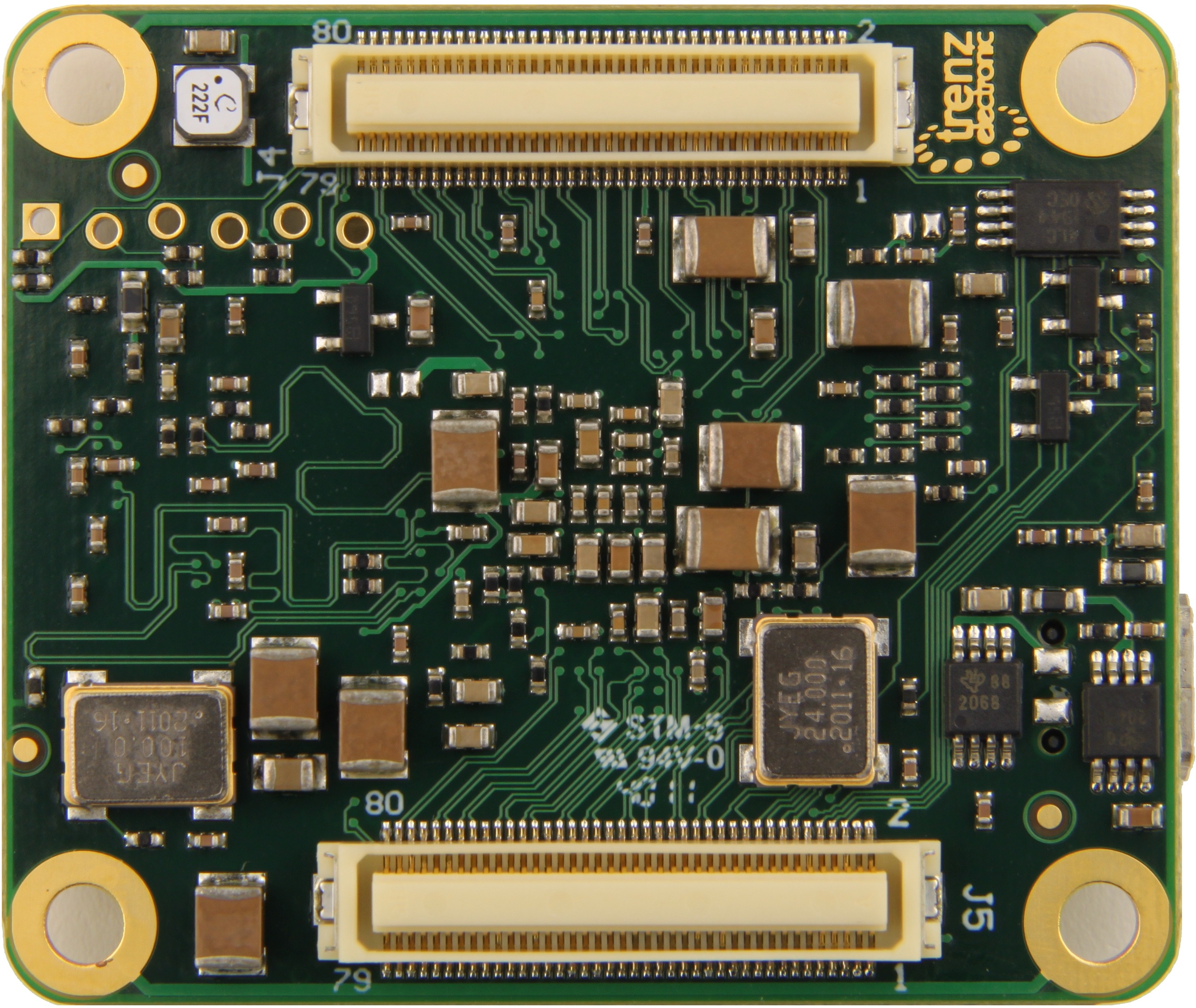

TE0630, bottom view

Key Features

  • Industrial-grade Xilinx Spartan-6 LX FPGA micro-module (45/75/100/150)
  • mini-USB 2.0 high-speed device (for configuration and operation)
  • 16-bit-wide 1 Gb (128 MB) DDR3 SDRAM
  • 64 Mbit (8 Mbyte) SPI Flash memory (for configuration and operation) accessible through:
    • FPGA
    • JTAG port (SPI indirect)
    • USB
  • FPGA configuration through:
    • B2B connector
    • JTAG port
    • SPI Flash memory
  • Plug-on module with 2 × 80-pin stacking connectors
  • Up to 40 differential and up to 109 single-ended FPGA I/O pins available on B2B connectors
  • 1.2 V, 1.5 V, 2.5 V = VCCAUX and 3.3 V power rails
  • 24 MHz and 100 MHz reference clock signals
  • eFUSE bit-stream encryption (LX75 or larger)
  • 4 user LEDs
  • 1 user push-button
  • 2 user DIP switches
  • Evenly-spread supply pins for good signal integrity
  • Other assembly options for cost or performance optimization available upon request

Specifications

  • Xilinx Spartan-6 LX FPGA:
    • XC6SLX45-2CSG484C = 43 k logic cells, commercial grade
      XC6SLX45-2CSG484I = 43 k logic cells, industrial grade
    • XC6SLX75-2CSG484C = 74 k logic cells, commercial grade
      XC6SLX75-2CSG484I = 74 k logic cells, industrial grade
    • XC6SLX100-2CSG484C = 101 k logic cells, commercial grade
      XC6SLX100-2CSG484I = 101 k logic cells, industrial grade
    • XC6SLX150-2CSG484C = 147 k logic cells, commercial grade
      XC6SLX150-2CSG484I = 147 k logic cells, industrial grade
  • Cypress CY7C68013A-56LFXC EZ-USB FX2LP™:
    USB microcontroller, high speed USB peripheral controller
  • 16-bit-wide (data-bus) 1 gigabit (128 megabyte) DDR3 SDRAM
  • 64 megabit (8 megabyte) serial Flash memory with dual/quad SPI interface
  • 2 x fine-pitch (0.5 mm) 80-pin board-to-board connectors
    Hirose DF17 series
  • Up to 40 differential FPGA input/output pins available on B2B connectors
  • Up to 109 single-ended FPGA input/output pins available on B2B connectors
  • USB and JTAG pins available on B2B connectors
  • 4 A (3 A REV00) high-efficiency DC-DC switching regulator for power rail 1.2 V
  • 3 A (1.5 A REV01) high-efficiency DC-DC switching regulator for power rail 1.5 V
  • 0.8 A DC-DC linear regulator for power rails 2.5 V and VCCAUX
  • 3 A (1.5 A REV01) high-efficiency DC-DC switching regulator for power rail 3.3 V
  • Power supervisory circuits with power-fail
  • Power supply voltage range: 4.0 to 5.5 V
  • Power supply source: USB port, board-to-board interconnect (e.g. carrier board)
  • Dimensions: 47,5 × 40.5 mm (19.2 cm2)
  • Minimum height: TBD (without connectors)
  • Minimum height on carrier board: TBD
  • Weight: 14.0 to 14.5 g
  • Temperature grades:
    • commercial (C-type FPGA device)
    • industrial (I-type FPGA device)

References

  • manufacturer name: Trenz Electronic GmbH
  • manufacturer part name(s) = manufacturer part code(s)
    • TE0630 XC6SLX45-2CSG484C = TE0630-00
  • manufacturer part page: this page
  • documentation archive: TDB

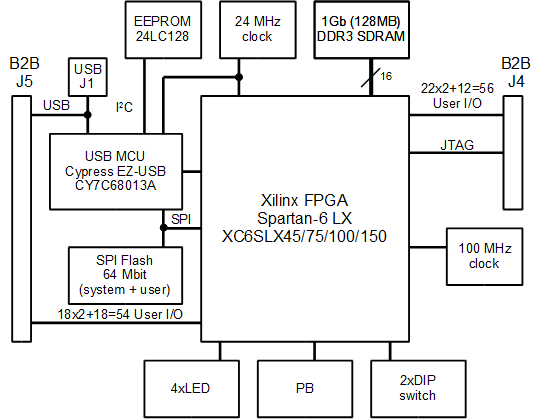

TE0630 block diagram
