To see the device status you should open "Device Manager" using one of this two procedure:
  • Start\Control Panel\System and Security\System\Device Manger
  • write devmgmt.msc in the line “Search programs and files” to go directly to the Device Manager

If the TE0300 module is used, the S2 switch must be turned on (RUN).

If the TE0320 module is used, the S1D switch must be turned on (RUN).

DEWESoft device (Generation 2)

TE USB FX2 module starts as a DEWESoft device (at power on) (Generation 2) when

  1. Generation 2 firmware is correctly stored in FX2 microcontroller's EEPROM;
  2. the EEPROM connection is enabled when the TE USB FX2 module is powered on.

If DEWESoft driver is not installed, this immage appears in Windows "Device manager"

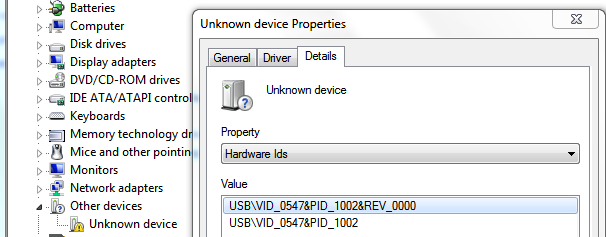

DEWESoft driver is not installed: Unknow Device

If DEWESoft driver is installed, one of these two immage appears in Windows "Device manager"

DEWESoft Driver VersionDevice Manager image
Current
Prevoius
DEWESoft device driver installed

TE device (Generation 3)

TE USB FX2 module starts as a TE device (at power on) (Generation 3) when

  1. Generation 3 firmware is correctly stored in FX2 microcontroller's EEPROM;
  2. the EEPROM connection is enabled when the TE USB FX2 module is powered on.

If TE USB FX2 driver is not installed, this immage appears in Windows "Device manager"

TE USB FX2 driver is not installed

If TE USB FX2 driver is installed, this immage appears in Windows "Device manager"

TE USB FX2 driver is installed.

Cypress device (Recovery procedure)

TE USB FX2 module starts as a Cypress device (at power on) when

  1. the EEPROM connection is disabled when the TE USB FX2 module is powered on.

If Cypress USB Generic Driver is not installed this immage appears in Windows "Device manager"

Cypress USB Generic Driver is not installed

If Cypress USB Generic Driver is installed, this image appears in Windows "Device manager"

Cypress USB Generic Driver is installed
