| Company | Trenz Electronic GmbH |
|---|---|
| PCN Number | PCN-20180511 |
| Title | PCN-20180511 TE0841-01 to TE0841-02 hardware revision upgrade |
| Subject | Hardware revision 01 to 02 |
| Issue Date | 20180511 |
Products Affected
This change affects all Trenz Electronic TE0841 SoMs: TE0841-01*.
Affected Product | Replacement |
|---|---|
| TE0841-01* | TE0841-02* |
Changes
#1 Change SPI Flash from N25Q256A11E1240E to N25Q512A11G1240E
Type: BOM change
Reason: N25Q256A11E1240E became obsolete, the replacement part is not available for purchase. This is only an interim solution, because N25Q512A11G1240E is also obsolete already. It will be changed after the replacement parts will be available.
Impact: size changed from 256 MBit to 512 MBit per chip. JEDEC ID changed from BB19h to BB20h, both with manufacturer ID 20h.
Method of identification

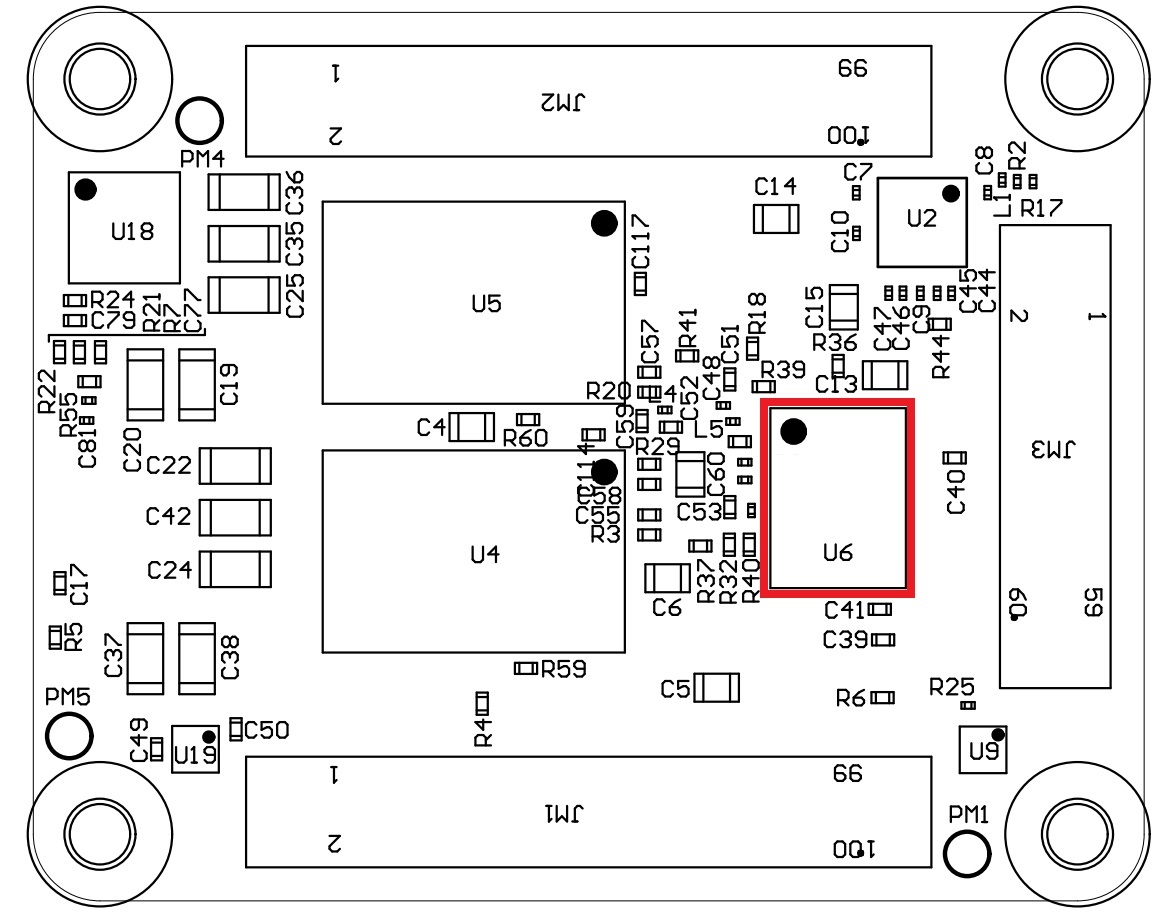

Locate Flash on backside of PCB:

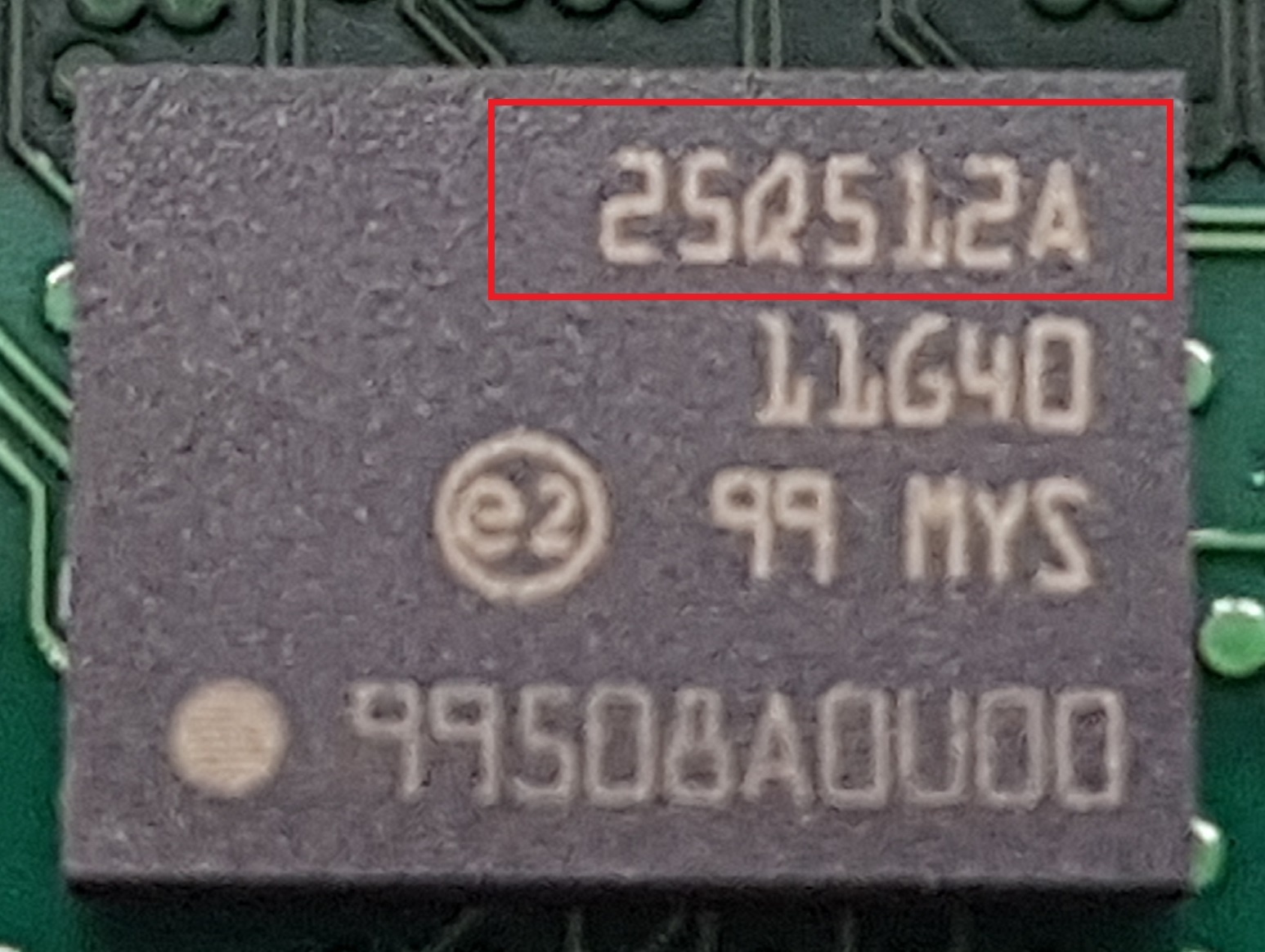

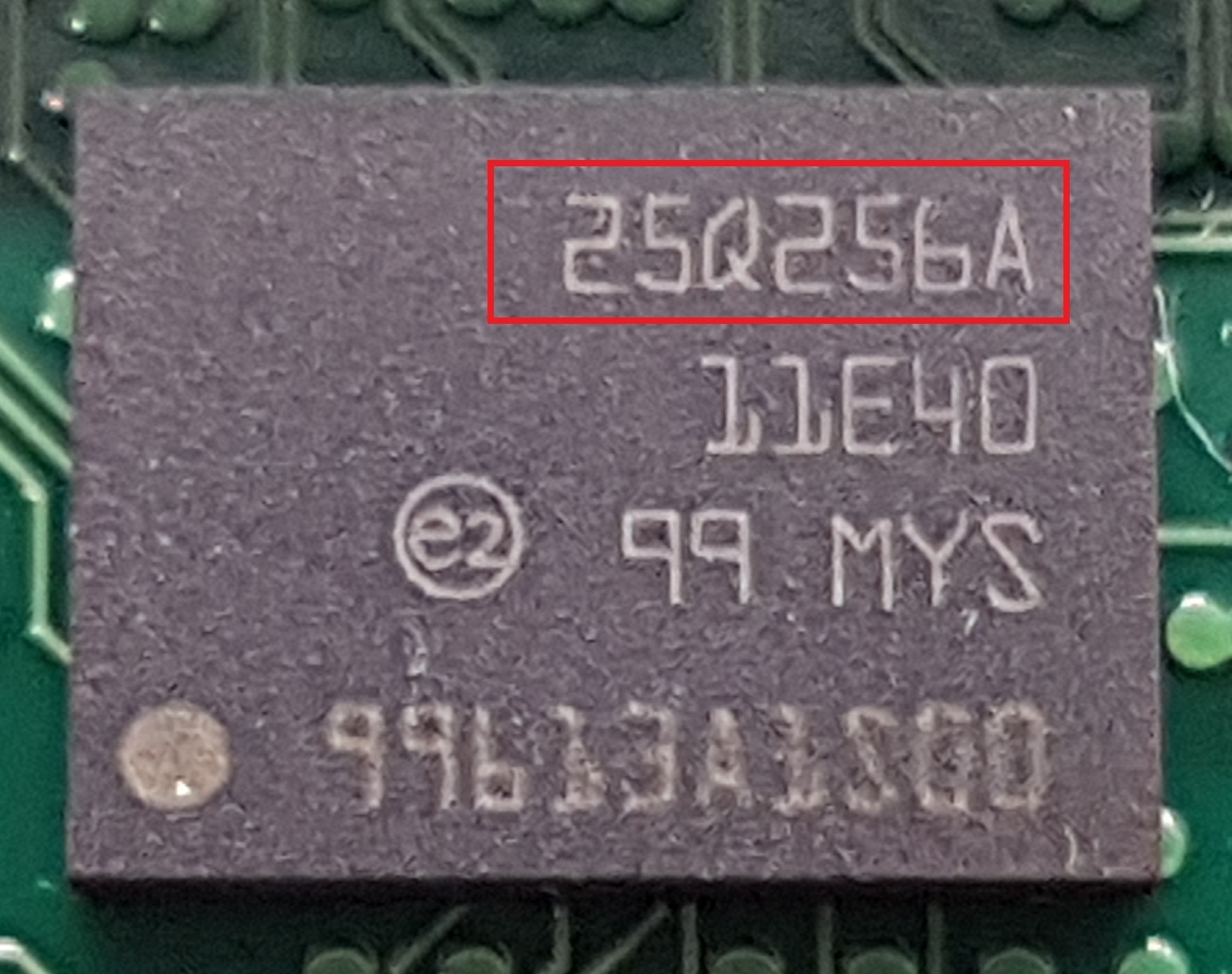

N25Q256A11E1240E | N25Q512A11G1240E |
|---|---|
|
|
#2 Change of DDR4 from NT5AD256M16B2-GN to K4A8G165WB-BIRC
Type: BOM change
Reason: NT5AD256M16B2-GN will be obsolete, doubles the DDR size, industrial temperature grade of DDR.
Impact: new DDR timing and size need to be considered in customer design.
#3 Fixed sense connection on DCDC
Type: Layout change
Reason: Sense connection was not optimal, voltage drop under high load was too high.
Impact: None
#4 Added support for 16 GBIT DDR4 chips
Type: Layout change
Reason: Add support for higher memory capacity.
Impact: None
#5 Added strong pull-down to EN_PL
Type: Layout change
Reason: Improved reliability.
Impact: None
#6 Added additional testpoints for I2C bus
Type: Layout change
Reason: Improved testing capability.
Impact: None
#7 Added additional MEMS oscillator (25MHz)
Type: Layout change
Reason: Improved usabilty.
Impact: None
#8 Changed pull-up on PG_DDR from VIN to 3.3VIN
Type: Layout change
Reason: Error correction.
Impact: None
#9 Added pull-down to EN_DDR
Type: Layout change
Reason: Error correction.
Impact: None
Production Shipment Schedule
From May 2018, after old stock is gone.
Contact Information
If you have any questions related to this PCN, please contact Trenz Electronics technical support at
- forum.trenz-electronic.de
- wiki.trenz-electronic.de
- support%trenz-electronic.de (subject = PCN-20180511)
phone
national calls: 05223 65301-0
international calls: 0049 5223 65301-0
