| Company | Trenz Electronic GmbH |
|---|---|
| PCN Number | PCN-20260924 |
| Title | TE0803-04 DDR4 Update |
| Subject | BOM Change |
| Issue Date | 2026-09-25 |
Products Affected
This change affects all Trenz Electronic TE0803 SoMs: TE0803-04*.
Affected Product | Changes | Replacement |
|---|---|---|
| TE0803-04-2AE11-A | #1 | TE0803-04-2AE61-A |
| TE0803-04-2AE11-AK | #1 | TE0803-04-2AE61-AK |
| TE0803-04-2AE11-L | #1 | TE0803-04-2AE61-L |
| TE0803-04-2BE11-A | #1 | TE0803-04-2BE61-A |
| TE0803-04-2BE11-AK | #1 | TE0803-04-2BE61-AK |
| TE0803-04-3AE11-A | #1 | TE0803-04-3AE61-A |
| TE0803-04-3AE11-AK | #1 | TE0803-04-3AE61-AK |
| TE0803-04-3BE11-A | #1 | TE0803-04-3BE61-A |
| TE0803-04-3BE11-AK | #1 | TE0803-04-3BE61-AK |
| TE0803-04-3BE11-AS | #1 | TE0803-04-3BE61-AS |
| TE0803-04-3BE11-K | #1 | TE0803-04-3BE61-K |
| TE0803-04-3BE81-A | #2 | TE0803-04-3BE61-A |
| TE0803-04-3BE81-L | #2 | TE0803-04-3BE61-L |
| TE0803-04-4AE11-A | #1 | TE0803-04-4AE61-A |
| TE0803-04-4AE11-AK | #1 | TE0803-04-4AE61-AK |
| TE0803-04-4AE11-AZ | #1, #3 | TE0803-04-4AE61-A |
| TE0803-04-4BE11-A | #1 | TE0803-04-4BE61-A |
| TE0803-04-4BE11-AK | #1 | TE0803-04-4BE61-AK |
| TE0803-04-4BE11-AS | #1 | TE0803-04-4BE61-AS |
| TE0803-04-4BE81-L | #2 | TE0803-04-4BE61-L |
| TE0803-04-4BI81-A | #2 | TE0803-04-4BI61-A |
| TE0803-04-4DE11-A | #1 | TE0803-04-4DE61-A |
| TE0803-04-4DE11-AK | #1 | TE0803-04-4DE61-AK |
| TE0803-04-4DE81-L | #2 | TE0803-04-4DE61-L |
| TE0803-04-4DE81-LK | #2 | TE0803-04-4DE61-LK |
| TE0803-04-4DI81-L | #2 | TE0803-04-4DI61-L |
| TE0803-04-4GE81-L | #2 | TE0803-04-4GE61-L |
| TE0803-04-4GE81-LK | #2 | TE0803-04-4GE61-LK |
| TE0803-04-4GI81-A | #2 | TE0803-04-4GI61-A |
| TE0803-04-5DE11-A | #1 | TE0803-04-5DE61-A |
| TE0803-04-5DE11-AS | #1 | TE0803-04-5DE61-AS |
| TE0803-04-5DI81-A | #2 | TE0803-04-5DI61-A |
| TE0803-04-5DI84-A | #2 | TE0803-04-5DI64-A |
Changes
#1 Changed DDR4 SDRAM (U2, U3, U9, U12) from NT5AD256M16D4-HR (512 MByte) to IS43QR16512A-075VBLI (1 GByte).
Type: Schematic Change
Reason: EOL of Component.
Impact: With increased memory size also static and dynamic (usage dependent) power consumption is increased. If relevant for your application, please compare IDD current values of corresponding memory datasheets. Memory design settings needs to be reviewed/updated in customer design. Reference designs for variants with new memory are available. Refer to ZynqMP DDR4 Memory Setup for additional information.
#2 Changed DDR4 SDRAM (U2, U3, U9, U12) from K4A8G165WC-BITDTCT to IS43QR16512A-075VBLI.
Type: BOM change
Reason: EOL of Component.
Impact: New DDR timings may be considered in designs. DDR4 setup used in reference design is known to work still according to ZynqMP DDR4 Memory Setup.
#3 Changed DCDC (U13, U15, U16, U19, U20, U23, U24, U29, U30, U31) from MUN3CAD03-SE to TPS82085SIL and adapted voltage divider resistors.
Type: BOM Change
Reason: TPS82085SIL availability.
Impact: Minor changes in electrical characteristics.
Method of Identification

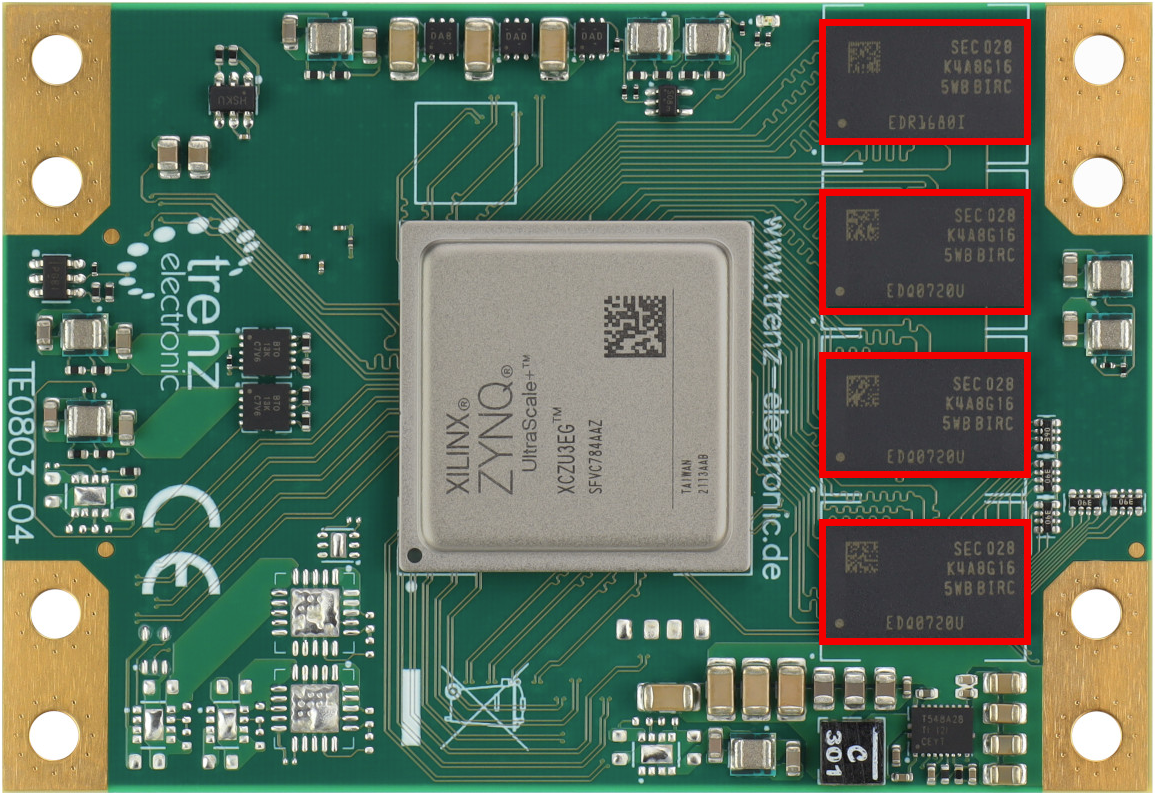

Locate DDR4 SDRAM (U2, U3, U9, U12) on top side of TE0803-04 PCB:
Change Number | old | new |
|---|---|---|

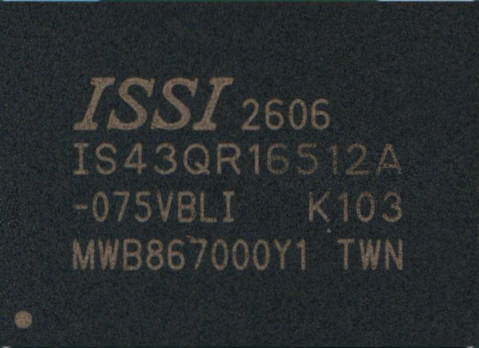

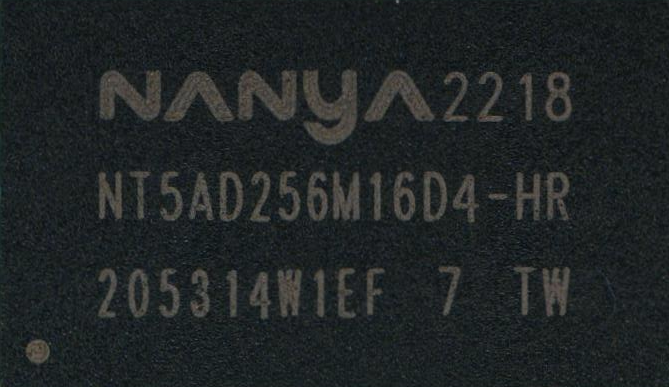

| #1 | NT5AD256M16D4-HR | IS43QR16512A-075VBLI |
|
| |

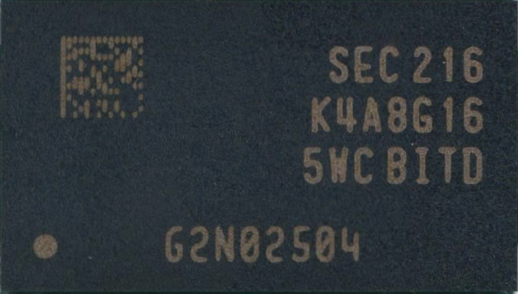

| #2 | K4A8G165WC-BITDTCT | IS43QR16512A-075VBLI |
|
|
Production Shipment Schedule
This change takes place with immediate effect. If the new revision is not suitable for your application and still the former revision of the board is needed, please contact us.
Contact Information
If you have any questions related to this PCN, please contact Trenz Electronics Technical Support at
- forum.trenz-electronic.de
- wiki.trenz-electronic.de
- support%trenz-electronic.de (subject = PCN-20260924)
phone
national calls: 05741 3200-0
international calls: 0049 5741 3200-0
Disclaimer
Any projected dates in this PCN are based on the most current product information at the time this PCN is being issued, but they may change due to unforeseen circumstances. For the latest schedule and any other information, please contact your local Trenz Electronic sales office, technical support or local distributor.
This PCN follows JEDEC Standard J-STD-046.
