Table of contents

Overview

TEC0850 design for MAX10 FPGA U18:  10M08SAU169C8G.

Feature Summary

  • SC to HD-IO Bank Interface
  • I²C Backplane interface
  • I²C System Control interface
  • Power control
  • Power status
  • FAN Control
  • FAN Status
  • Power status indication

Firmware Revision and supported PCB Revision

See Document Change History.

Product Specification

Port Description

Name / opt. VHD NameDirectionPinBank PowerDescription
ADBUS0        inG93V_DFTDI TCK
ADBUS1        inF103V_DFTDI TDI
ADBUS2        outE103V_DFTDI TDO
ADBUS3        inD93V_DFTDI TMS
AVDD_SHDN     inoutG103V_DAVDD Shutdown / AVDD OV/UV
BCBUS0        -D123V_DFTDI (JTAG/UART, U4) / currently_not_used
BCBUS1        -E133V_DFTDI (JTAG/UART, U4) currently_not_used
BCBUS2        -E123V_DFTDI (JTAG/UART, U4) currently_not_used
BCBUS3        -F133V_DFTDI (JTAG/UART, U4) currently_not_used
BCBUS4        -F123V_DFTDI (JTAG/UART, U4) currently_not_used
BDBUS0 / FTDI_RXD-B113V_DUART FTDI U4
BDBUS1 / FTDI_TXD   -A123V_DUART FTDI U4
BDBUS2        -B123V_DFTDI (JTAG/UART, U4) currently_not_used
BDBUS3        -C113V_DFTDI (JTAG/UART, U4) currently_not_used
BDBUS4        -B133V_DFTDI (JTAG/UART, U4) currently_not_used
BDBUS5        -C123V_DFTDI (JTAG/UART, U4) currently_not_used
BDBUS6        -C133V_DFTDI (JTAG/UART, U4) currently_not_used
BDBUS7        -D113V_DFTDI (JTAG/UART, U4) currently_not_used
CONF_DONE     -C53V_Dcurrently_not_used
DET_BPR       -H23V_Dcurrently_not_used
DET_RIO       -H33V_Dcurrently_not_used
DONE          inN3PS_1V8FPGA Done
EN_3V3        outC103V_D3.3V Power Enable
EN_DAC1       outE63V_DDAC1 Power Enable
EN_DAC2       outE83V_DDAC2 Power Enable
EN_DAC3       outB63V_DDAC3 Power Enable
EN_DAC4       outA63V_DDAC4 Power Enable
EN_DDR        outG133V_DDDR Power Enable
EN_FPD        outL123V_DFPD Power Enable
EN_LPD        outJ133V_DLPD Power Enable
EN_PSGT       outB93V_DPSGT Power Enable
ERR_OUT       -G5PS_1V8currently_not_used
ERR_STATUS    -H6PS_1V8currently_not_used
F_TCK         outN2PS_1V8FPGA TCK
F_TDI         outM1PS_1V8FPGA TDI
F_TDO         inK1PS_1V8FPGA TDO
F_TMS         outJ1PS_1V8FPGA TMS
F1PWM         outH103V_DFAN PWM Control
F1SENSE       inJ93V_DFAN Sense
FTDI_RST      outE93V_DFTDI Reset
GA0           -F83V_DBackplane address / currently_not_used
GA0_R         -F93V_DBackplane address, pullup/down enable currently_not_used
GA1           -A23V_DBackplane addresscurrently_not_used
GA1_R         -B23V_DBackplane address, pullup/down enable currently_not_used
GA2           -A33V_DBackplane addresscurrently_not_used
GA2_R         -B33V_DBackplane address, pullup/down enable currently_not_used
GA3           -A43V_DBackplane addresscurrently_not_used
GA3_R         -B43V_DBackplane address, pullup/down enable currently_not_used
IEEE_SW_NC    -C93V_Dcurrently_not_used
IEEE_SW_NO    -A113V_Dcurrently_not_used
INIT_B        inL2PS_1V8FPGA Init
JTAGEN        -E53V_DJTAG Enable
LED_FP_4      outM43.3VFront panel LED
LP_GOOD       inH133V_DLP Power Good
M10_RST       -A73V_Dcurrently_not_used
M10_RX        -C23V_Dcurrently_not_used
M10_TX        -B13V_Dcurrently_not_used
MAX_IO1 / IO1    inN83.3VI²C SCL in, ZynqMP Pin G18
MAX_IO10      -M103.3Vcurrently_not_used
MAX_IO2 / IO2 outN73.3VI²C SCL out, ZynqMP Pin G19
MAX_IO3 / IO3 inM93.3VI²C SDA in, ZynqMP Pin K18
MAX_IO4 / IO4 outM83.3VI²C SDA out, ZynqMP Pin H19
MAX_IO5 / IO5 inM123.3VUser LED in, ZynqMP Pin J17
MAX_IO6       -M133.3Vcurrently_not_used
MAX_IO7       -N93.3Vcurrently_not_used
MAX_IO8       -N103.3Vcurrently_not_used
MAX_IO9       -M113.3Vcurrently_not_used
MIO22         outM3PS_1V8UART out
MIO23         inM2PS_1V8UART in
MIO24         -L3PS_1V8currently_not_used
MIO25         -H5PS_1V8currently_not_used
MR            outK103V_DSupervisor Reset out
N.C.-J53.3Vcurrently_not_used
N.C.-J63.3Vcurrently_not_used
N.C.-J73.3Vcurrently_not_used
N.C.-J83.3Vcurrently_not_used
N.C.-K53.3Vcurrently_not_used
N.C.-K63.3Vcurrently_not_used
N.C.-K73.3Vcurrently_not_used
N.C.-K83.3Vcurrently_not_used
N.C.-L43.3Vcurrently_not_used
N.C.-L53.3Vcurrently_not_used
N.C.-M53.3Vcurrently_not_used
N.C.-M73.3Vcurrently_not_used
N.C.-N43.3Vcurrently_not_used
N.C.-N53.3Vcurrently_not_used
N.C.-N63.3Vcurrently_not_used
N.C.-L103.3Vcurrently_not_used
N.C.-L113.3Vcurrently_not_used
N.C.-N123.3Vcurrently_not_used
nCONF         -E73V_Dcurrently_not_used
nSTATUS       -C43V_Dcurrently_not_used
ON_GT_L       outJ123V_DGT_L Power Enable
ON_GT_R       outK123V_DGT_R Power Enable
PG_DDR        inH83V_DDDR Power Good
PG_GT_L       inH93V_DGT_L Power Good
PG_GT_R       inG123V_DGT_R Power Good
PG_PL         inL133V_DPL Power Good
PG_PSGT       inK113V_DPSGT Power Good
PLL_RST       outK2PS_1V8PLL Chip Reset
PROG_B        outJ2PS_1V8FPGA PROG_B
PSON          -D63V_Dcurrently_not_used
RP_SCL        -E13V_Dcurrently_not_used
RP_SDI        -G43V_Dcurrently_not_used
RP_SDO        -F43V_Dcurrently_not_used
RP_SL         -F13V_Dcurrently_not_used
RST           -B53V_Dcurrently_not_used
RST_PRST      -A83V_Dcurrently_not_used
RST_PRST_R    -B103V_Dcurrently_not_used
RST_R         -D83V_Dcurrently_not_used
SATA_SCL      -G23V_Dcurrently_not_used
SATA_SDI      -F63V_Dcurrently_not_used
SATA_SDO      -F53V_Dcurrently_not_used
SATA_SL       -G13V_Dcurrently_not_used
SMB_SCL       inoutE33V_DI²C SCL
SMB_SCL_R     outE43V_DI²C SCL Pullup Enable
SMB_SDA       inoutC13V_DI²C SDA
SMB_SDA_R     outD13V_DI²C SDA Pullup Enable
SRST_B        outH4PS_1V8FPGA SRST_B
SW4           inA53V_DDip Switch
SYSEN         -D73V_Dcurrently_not_used
USR_BTN       inJ103V_DFront panel button
WAKE          -A93V_Dcurrently_not_used
WAKE_R        -A103V_Dcurrently_not_used

Functional Description

Power

System Controller provides control and status information for main power rails. By default all power rails are ON, the user can manipulate power using I²C interface, see  Memory map table.

Reset

System controller generates a reset pulse to supervisor chip U69 when front panel button S3 is pressed.

JTAG

JTAG interface from FTDI controller passes through System Controller to FPGA.

I²C Interface

To use SC I²C interface corresponding connection should be configured in the FPGA project. There are 2 standard I²C interface controllers, which can be used AXI_IIC or Zynq UltraScale+ MPSoC integrated I²C controller.

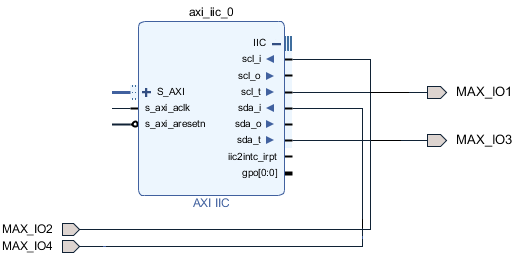

AXI_IIC

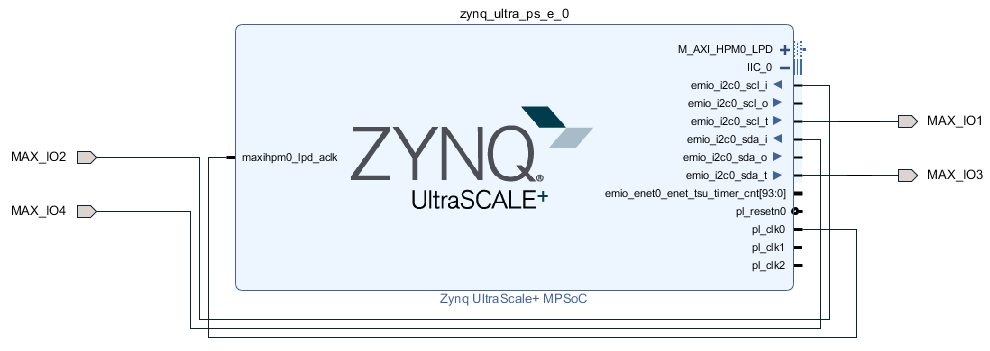

Zynq UltraScale+ MPSoC integrated I²C controller

Project XDC file should contain

set_property PACKAGE_PIN G18 [get_ports {MAX_IO1}]
set_property PACKAGE_PIN G19 [get_ports {MAX_IO2}]
set_property PACKAGE_PIN K18 [get_ports {MAX_IO3}]
set_property PACKAGE_PIN H19 [get_ports {MAX_IO4}]
set_property IOSTANDARD LVCMOS33 [get_ports MAX_IO*]
set_property PULLUP true [get_ports {MAX_IO2}]
set_property PULLUP true [get_ports {MAX_IO4}]


With this configuration, I²C device with address 0x20 should be visible on I²C bus

This device is an emulation of TCA6416 I²C GPIO Chip. GPIO input and output pins are used to get status and control the system.

Memory map

AddressRegisterDescription
0Input Port 0

Power status register:

Bit 0 - LP_PGOOD

Bit 1 - PG_PL

Bit 2 - PG_PSGT

Bit 3 - PG_GT_L

Bit 4 - PG_GT_R

Bit 5 - PG_DDR

Bit 6 - AVDD OV/UV

Bit 7 - Not Used "0"

1Input Port 1

FAN Status register

Bits 7:0 - FAN RPM/1000

(Nominal Sepa HFB44B-12A speed is 8000 RPM)

2Output Port 0

Control register 0

Bits 1:0 - LED Control (Default "01")

Bit 2 - SMB Strong Pull-Up Enable (Default "1")

Bit 3 - Enable DAC1 Power (Default "1")

Bit 4 - Enable DAC2 Power (Default "1")

Bit 5 - Enable DAC3 Power (Default "1")

Bit 6 - Enable DAC4 Power (Default "1")

Bit 7 - Enable FPD Power (Default "1")

3Output Port 1

Control register 1

Bit 0 - Enable LPD Power (Default "1")

Bit 1 - Enable DDR Power (Default "1")

Bit 2 - Enable PSGT Power (Default "1")

Bit 3 - Enable GT_L Power (Default "1")

Bit 4 - Enable GT_R Power (Default "1")

Bit 5 - Enable FAN Power (Default "1") (Works only if 4-wire FAN is used)

Bit 6 - Enable AVDD Power (Default "1")

Bit 7 - System reset (Default "0", Reset by rising edge)

LED Control

Bits [1:0]Mode
"00"LED4 is OFF
"01"LED4 is Power indicator
"10"LED4 is User LED (connected to IO5)
"11"LED4 is ON

Power Indicator

BehaviorDescription
OFFNo power or SC failure
1 Pulse (*ooooooo)PSGT Power is not OK
2 Pulses (**oooooo)DDR Power is not OK
3 Pulses (***ooooo)LP Power is not OK
4 Pulses (****oooo)GT_L Power is not OK
5 Pulses (*****ooo)

GT_R Power is not OK

6 Pulses (******oo)PL Power is not OK
ONNo power problems detected


I²C GPIO registers can be operated with  directly, using Linux i2cset and i2cget commands

root@petalinux:~# # Disable LED4
root@petalinux:~# i2cset -y 0 0x20 2 0xFC
root@petalinux:~# # Get Power status
root@petalinux:~# i2cget -y 0 0x20 0 b
0x3f
root@petalinux:~# # Get FAN RPM/1000
root@petalinux:~# i2cget -y 0 0x20 1 b
0x08

or I²C GPIO device driver can be instantiate in Linux device tree (project-spec/meta-user/recipes-bsp/device-tree/files/system-user.dtsi).

&i2c0 {
	tca6416: tca6416@21 {
		compatible = "ti,tca6416";
		reg = <0x20>;
		gpio-controller;
		#gpio-cells = <2>;
	};
};


LED

The System Controller control D4 LED (front panel green rightmost LED). By default, it act like power status indicator see "Power Indicator" table in "I²C interface" section.


Appx. A: Change History and Legal Notices

Revision Changes

RE02 to REV03

  • Add I²C GPIO core
  • FAN Control/FAN Status
  • Power control

RE03 to REV04

  • BUGFIX Reset

Document Change History

To get content of older revision got to "Change History"  of this page and select older document revision number.

DateDocument RevisionCPLD Firmware RevisionSupported PCB RevisionAuthorsDescription

REV04REV02
  • REV04 finished
  • Firmware release on 2018-10-24
2018-10-10v.20REV03REV02Oleksandr Kiyenko
  • REV03 finished
  • Firmware release on 2018-10-10
2018-08-15v.3REV02REV02Antti Lukats
  • initial release

All
