Zynq Design PS with Linux and  two Ethernet PHYs connected over EMIO and PL.

Refer to for the current online version of this manual and other available documentation.

Key Features

  • PetaLinux
  • SD
  • 2x ETH (Independent MDIO Interface and DP83848 PHY)
  • I2C
  • RTC
  • Special FSBL for QSPI programming

Revision History

DateVivadoProject BuiltAuthorsDescription
John Hartfiel
  • rework board part files
  • rework petalinux device tree, driver
  • small changes on xdc
John Hartfiel
  • initial release
Design Revision History

Release Notes and Know Issues

IssuesDescriptionWorkaroundTo be fixed version
Wrong UBoot ETH PHY AddressPHY Address is not set correctly for UBoot---solved with 2018-12-12 update

Linux Message: "macb ... .ethernet eth...: unable to generate target frequency: 25000000 Hz"

This can be ignored, ETH works.------
Known Issues





Basic description of TE Board Part Files is available on TE Board Part Files.

Complete List is available on <design name>/board_files/*_board_files.csv

Design supports following modules:

Module ModelBoard Part Short NamePCB Revision SupportDDRQSPI FlashOthersNotes
TE0728-03-1Q03_1qREV01, REV02, REV03512MB16MB


Hardware Modules

Design supports following carriers:

Carrier ModelNotes
Hardware Carrier

Additional HW Requirements:

Additional HardwareNotes
XMOD Programmer
Additional Hardware


For general structure and of the reference design, see Project Delivery - Xilinx devices

Design Sources

Vivado<design name>/block_design
<design name>/constraints
<design name>/ip_lib
Vivado Project will be generated by TE Scripts
SDK/HSI<design name>/sw_libAdditional Software Template for SDK/HSI and apps_list.csv with settings for HSI
PetaLinux<design name>/os/petalinuxPetaLinux template with current configuration
Design sources

Additional Sources

TypeLocationNotes<design name>/sd/Additional Initialization Script for Linux
Additional design sources





BIF-File*.bifFile with description to generate Bin-File
BIN-File*.binFlash Configuration File with Boot-Image (Zynq-FPGAs)
BIT-File*.bitFPGA (PL Part) Configuration File
Diverse Reports---Report files in different formats
Hardware-Platform-Specification-Files*.hdfExported Vivado Hardware Specification for SDK/HSI and PetaLinux
LabTools Project-File*.lprVivado Labtools Project File
OS-Image*.ubImage with Linux Kernel (On Petalinux optional with Devicetree and RAM-Disk)
Software-Application-File*.elfSoftware Application for Zynq or MicroBlaze Processor Systems
Prebuilt files (only on ZIP with prebult content)


Reference Design is only usable with the specified Vivado/SDK/PetaLinux/SDx version. Do never use different Versions of Xilinx Software for the same Project.

Reference Design is available on:

Design Flow

Reference Design is available with and without prebuilt files. It's recommended to use TE prebuilt files for first lunch.

MIO Bank 501 Power is Carrier depends and set to 3.3V. Please check Settings, if you use a own carrier.

Trenz Electronic provides a tcl based built environment based on Xilinx Design Flow.

See also:

The Trenz Electronic FPGA Reference Designs are TCL-script based project. Command files for execution will be generated with "_create_win_setup.cmd" on Windows OS and "" on Linux OS.

TE Scripts are only needed to generate the vivado project, all other additional steps are optional and can also executed by Xilinx Vivado/SDK GUI.  For currently Scripts limitations on Win and Linux OS see: Project Delivery Currently limitations of functionality


  1. _create_win_setup.cmd/ and follow instructions on shell:
  2. Press 0 and enter for minimum setup
  3. (optional Win OS) Generate Virtual Drive or use short directory  for the reference design (for example x:\<design name>)
  4. Create Project
    1. Select correct device and Xilinx install path on "design_basic_settings.cmd" and create Vivado project with "vivado_create_project_guimode.cmd"
      Note: Select correct one, see TE Board Part Files
  5. Create HDF and export to prebuilt folder
    1. Run on Vivado TCL: TE::hw_build_design -export_prebuilt
      Note: Script generate design and export files into \prebuilt\hardware\<short dir>. Use GUI is the same, except file export to prebuilt folder
  6. Create Linux (uboot.elf and image.ub) with exported HDF
    1. HDF is exported to "prebuilt\hardware\<short name>"
      Note: HW Export from Vivado GUI create another path as default workspace.
    2. Create Linux images on VM, see PetaLinux KICKstart
      1. Use TE Template from /os/petalinux
  7. Add Linux files (uboot.elf and image.ub) to prebuilt folder
    1. "prebuilt\os\petalinux\default" or "prebuilt\os\petalinux\<short name>"
      Notes: Scripts select "prebuilt\os\petalinux\<short name>", if exist, otherwise "prebuilt\os\petalinux\default"
  8. Generate Programming Files with HSI/SDK
    1. Run on Vivado TCL: TE::sw_run_hsi
      Note: Scripts generate applications and bootable files, which are defined in "sw_lib\apps_list.csv"
    2. (alternative) Start SDK with Vivado GUI or start with TE Scripts on Vivado TCL: TE::sw_run_sdk
      Note: See SDK Projects



Check Module and Carrier TRMs for proper HW configuration before you try any design.

Xilinx documentation for programming and debugging: Vivado/SDK/SDSoC-Xilinx Software Programming and Debugging


Optional for Boot.bin on QSPI Flash and image.ub on SD.

  1. Connect JTAG and power on carrier with module
  2. Open Vivado Project with "vivado_open_existing_project_guimode.cmd" or if not created, create with "vivado_create_project_guimode.cmd"
  3. Type on Vivado TCL Console: TE::pr_program_flash_binfile -swapp u-boot
    Note: To program with SDK/Vivado GUI, use special FSBL (zynqmp_fsbl_flash) on setup
             optional "TE::pr_program_flash_binfile -swapp hello_te0728" possible
  4. Copy image.ub on SD-Card
    • For correct prebuilt file location, see <design_name>/prebuilt/readme_file_location.txt
  5. Insert SD-Card


  1. Copy image.ub and Boot.bin on SD-Card.
    • For correct prebuilt file location, see <design_name>/prebuilt/readme_file_location.txt
  2. Set Boot Mode to SD-Boot.
    • Depends on Carrier, see carrier TRM.
  3. Insert SD-Card in SD-Slot.


Not used on this Example.


  1. Prepare HW like described on section TE0728 Test Board#Programming
  2. Connect UART USB (most cases same as JTAG)
  3. Select SD Card as Boot Mode
    Note: See TRM of the Carrier, which is used.
  4. Power On PCB
    Note: 1. Zynq Boot ROM loads FSBL from SD into OCM, 2. FSBL loads U-boot from SD into DDR, 3. U-boot load Linux from SD into DDR


  1. Open Serial Console (e.g. putty)
    1. Speed: 115200
    2. COM Port: Win OS, see device manager, Linux OS see  dmesg |grep tty  (UART is *USB1)
  2. Linux Console:
    Note: Wait until Linux boot finished For Linux Login use:
    1. User Name: root
    2. Password: root
  3. You can use Linux shell now.
    1. I2C 0 Bus type: i2cdetect -y -r 0
    2. ETH0 works with udhcpc
    3. ETH1 must be configured manually
      1. ifconfig eth1 up
      2. ifconfig eth1 <ip>
        Note for Ping test disable ETH0
    4. RTC check: dmesg | grep rtc


System Design - Vivado

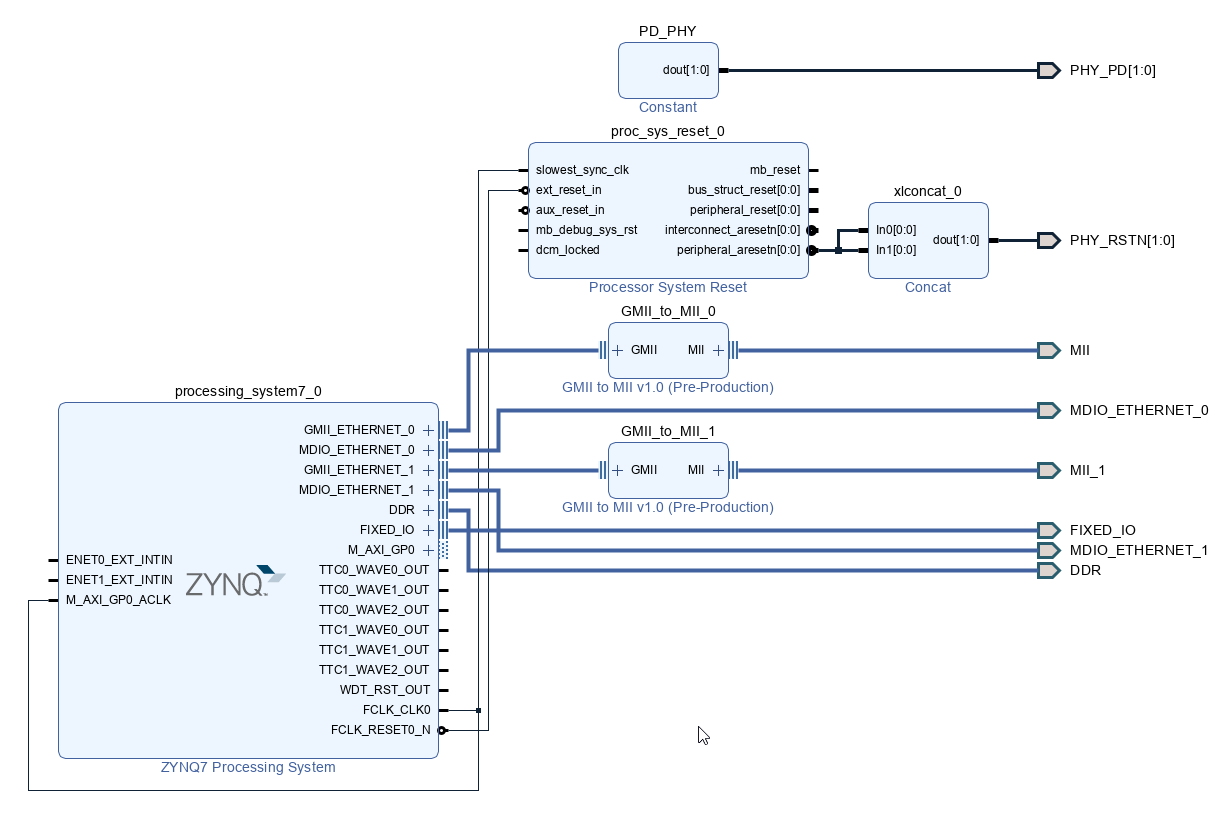

Block Design

Block Design

PS Interfaces

PS Interfaces


Basic module constrains

# Common bitgen related settings

set_property BITSTREAM.GENERAL.COMPRESS TRUE [current_design]
set_property CONFIG_VOLTAGE 3.3 [current_design]
set_property CFGBVS VCCO [current_design]

set_property BITSTREAM.CONFIG.USR_ACCESS TIMESTAMP [current_design]

Design specific constrain

set_property PACKAGE_PIN L21 [get_ports {PHY_PD[0]}]
set_property PACKAGE_PIN R20 [get_ports {PHY_PD[1]}]
set_property PACKAGE_PIN M15 [get_ports {PHY_RSTN[0]}]
set_property PACKAGE_PIN R16 [get_ports {PHY_RSTN[1]}]
#io standard
set_property IOSTANDARD LVCMOS33 [get_ports {PHY*}]
set_property IOSTANDARD LVCMOS33 [get_ports MDIO_*]
set_property IOSTANDARD LVCMOS33 [get_ports {MII_*}]
#pullup/down for PHY address 1
set_property PULLUP   true [get_ports MII_col]
set_property PULLDOWN true [get_ports {MII_rxd[0]}]
set_property PULLDOWN true [get_ports {MII_rxd[1]}]
set_property PULLDOWN true [get_ports {MII_rxd[2]}]
set_property PULLDOWN true [get_ports {MII_rxd[3]}]
#pullup/down for PHY address 3
set_property PULLUP true [get_ports MII_1_col]
set_property PULLUP true [get_ports {MII_1_rxd[0]}]
set_property PULLDOWN true [get_ports {MII_1_rxd[1]}]
set_property PULLDOWN true [get_ports {MII_1_rxd[2]}]
set_property PULLDOWN true [get_ports {MII_1_rxd[3]}]

set_property PACKAGE_PIN M16 [get_ports MDIO_ETHERNET_0_mdio_io]
set_property PACKAGE_PIN P16 [get_ports MDIO_ETHERNET_0_mdc]
set_property PACKAGE_PIN M22 [get_ports {MII_txd[3]}]
set_property PACKAGE_PIN K21 [get_ports {MII_txd[2]}]
set_property PACKAGE_PIN M17 [get_ports {MII_txd[1]}]
set_property PACKAGE_PIN J22 [get_ports {MII_txd[0]}]
set_property PACKAGE_PIN J20 [get_ports {MII_rxd[3]}]
set_property PACKAGE_PIN J18 [get_ports {MII_rxd[2]}]
set_property PACKAGE_PIN K18 [get_ports {MII_rxd[1]}]
set_property PACKAGE_PIN L17 [get_ports {MII_rxd[0]}]
set_property PACKAGE_PIN L16 [get_ports MII_col]
set_property PACKAGE_PIN N15 [get_ports MII_crs]
set_property PACKAGE_PIN L18 [get_ports MII_rx_clk]
set_property PACKAGE_PIN P15 [get_ports MII_rx_dv]
set_property PACKAGE_PIN P17 [get_ports MII_rx_er]
set_property PACKAGE_PIN K19 [get_ports MII_tx_clk]
set_property PACKAGE_PIN J21 [get_ports MII_tx_en]

set_property PACKAGE_PIN T16 [get_ports MDIO_ETHERNET_1_mdio_io]
set_property PACKAGE_PIN T17 [get_ports MDIO_ETHERNET_1_mdc]
set_property PACKAGE_PIN R21 [get_ports {MII_1_txd[3]}]
set_property PACKAGE_PIN P22 [get_ports {MII_1_txd[2]}]
set_property PACKAGE_PIN P21 [get_ports {MII_1_txd[1]}]
set_property PACKAGE_PIN N22 [get_ports {MII_1_txd[0]}]
set_property PACKAGE_PIN T19 [get_ports {MII_1_rxd[3]}]
set_property PACKAGE_PIN T18 [get_ports {MII_1_rxd[2]}]
set_property PACKAGE_PIN R19 [get_ports {MII_1_rxd[1]}]
set_property PACKAGE_PIN R18 [get_ports {MII_1_rxd[0]}]
set_property PACKAGE_PIN P20 [get_ports MII_1_col]
set_property PACKAGE_PIN N18 [get_ports MII_1_crs]
set_property PACKAGE_PIN M19 [get_ports MII_1_rx_clk]
set_property PACKAGE_PIN N17 [get_ports MII_1_rx_dv]
set_property PACKAGE_PIN P18 [get_ports MII_1_rx_er]
set_property PACKAGE_PIN N19 [get_ports MII_1_tx_clk]
set_property PACKAGE_PIN M21 [get_ports MII_1_tx_en]

Software Design - SDK/HSI

For SDK project creation, follow instructions from:

SDK Projects


Template location: ./sw_lib/sw_apps/


TE modified 2018.2 FSBL

Xilinx default FSBL,


  • only active FSBL banner independence form debug flags


TE modified 2018.2 FSBL

FSBL(for Vivado/SDK GUI only) to initialise Zynq for QSPI programming


  • Set FSBL Boot Mode to JTAG
  • Disable Memory initialisation
  • see  xfsbl_initialisation.main.c


U-Boot.elf is generated with PetaLinux. SDK/HSI is used to generate Boot.bin.

Software Design -  PetaLinux

Description currently not available.


No changes.


No changes.

Device Tree

/include/ "system-conf.dtsi"
/ {

/* QSPI PHY */
&qspi {
    #address-cells = <1>;
    #size-cells = <0>;
    status = "okay";
    flash0: flash@0 {
        compatible = "jedec,spi-nor";
        reg = <0x0>;
        #address-cells = <1>;
        #size-cells = <1>;

/* ETH PHY */

    status = "okay";
    phy-mode = "mii";
    phy-handle = <&phy1>;
    xlnx,has-mdio = <0x1>;
    mdio {
        #address-cells = <1>;
        #size-cells = <0>;
        phy1: phy@1 {
            device_type = "ethernet-phy";
            compatible = "ethernet-phy-id2000.5C90";
        max-speed = <0x64>;
            reg = <1>;

    status = "okay";
    phy-mode = "mii";
    phy-handle = <&phy3>;
    xlnx,has-mdio = <0x1>;
    mdio {
        #address-cells = <1>;
        #size-cells = <0>;
        phy3: phy@3 {
            device_type = "ethernet-phy";
        compatible = "ethernet-phy-id2000.5C90";
        max-speed = <0x64>;
            reg = <3>;

/* RTC */
&i2c0 {
    rtc@56 {        // Real Time Clock
       compatible = "rv3029c2";
       reg = <0x56>;



  • RTC_DRV_RV3029C2
  • DP83848_PHY



  • I2C-tools



Script App to load from SD Card if available.

See: \os\petalinux\project-spec\meta-user\recipes-apps\startup\files

Additional Software

No additional software is needed.

Appx. A: Change History and Legal Notices

Document Change History

To get content of older revision  got to "Change History"  of this page and select older document revision number.

DateDocument RevisionAuthorsDescription



  • Release 2018.2
  • Design and Documentation is changed

v.10John Hartfiel
  • Release 2017.2

  • Initial release

Legal Notices

Data Privacy

Please also note our data protection declaration at

Document Warranty

The material contained in this document is provided “as is” and is subject to being changed at any time without notice. Trenz Electronic does not warrant the accuracy and completeness of the materials in this document. Further, to the maximum extent permitted by applicable law, Trenz Electronic disclaims all warranties, either express or implied, with regard to this document and any information contained herein, including but not limited to the implied warranties of merchantability, fitness for a particular purpose or non infringement of intellectual property. Trenz Electronic shall not be liable for errors or for incidental or consequential damages in connection with the furnishing, use, or performance of this document or of any information contained herein.

Limitation of Liability

In no event will Trenz Electronic, its suppliers, or other third parties mentioned in this document be liable for any damages whatsoever (including, without limitation, those resulting from lost profits, lost data or business interruption) arising out of the use, inability to use, or the results of use of this document, any documents linked to this document, or the materials or information contained at any or all such documents. If your use of the materials or information from this document results in the need for servicing, repair or correction of equipment or data, you assume all costs thereof.

Copyright Notice

No part of this manual may be reproduced in any form or by any means (including electronic storage and retrieval or translation into a foreign language) without prior agreement and written consent from Trenz Electronic.

Technology Licenses

The hardware / firmware / software described in this document are furnished under a license and may be used /modified / copied only in accordance with the terms of such license.

Environmental Protection

To confront directly with the responsibility toward the environment, the global community and eventually also oneself. Such a resolution should be integral part not only of everybody's life. Also enterprises shall be conscious of their social responsibility and contribute to the preservation of our common living space. That is why Trenz Electronic invests in the protection of our Environment.



Trenz Electronic is a manufacturer and a distributor of electronic products. It is therefore a so called downstream user in the sense of REACH. The products we supply to you are solely non-chemical products (goods). Moreover and under normal and reasonably foreseeable circumstances of application, the goods supplied to you shall not release any substance. For that, Trenz Electronic is obliged to neither register nor to provide safety data sheet. According to present knowledge and to best of our knowledge, no SVHC (Substances of Very High Concern) on the Candidate List are contained in our products. Furthermore, we will immediately and unsolicited inform our customers in compliance with REACH - Article 33 if any substance present in our goods (above a concentration of 0,1 % weight by weight) will be classified as SVHC by the European Chemicals Agency (ECHA).


Trenz Electronic GmbH herewith declares that all its products are developed, manufactured and distributed RoHS compliant.


Information for users within the European Union in accordance with Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003 on waste electrical and electronic equipment (WEEE).

Users of electrical and electronic equipment in private households are required not to dispose of waste electrical and electronic equipment as unsorted municipal waste and to collect such waste electrical and electronic equipment separately. By the 13 August 2005, Member States shall have ensured that systems are set up allowing final holders and distributors to return waste electrical and electronic equipment at least free of charge. Member States shall ensure the availability and accessibility of the necessary collection facilities. Separate collection is the precondition to ensure specific treatment and recycling of waste electrical and electronic equipment and is necessary to achieve the chosen level of protection of human health and the environment in the European Union. Consumers have to actively contribute to the success of such collection and the return of waste electrical and electronic equipment. Presence of hazardous substances in electrical and electronic equipment results in potential effects on the environment and human health. The symbol consisting of the crossed-out wheeled bin indicates separate collection for waste electrical and electronic equipment.

Trenz Electronic is registered under WEEE-Reg.-Nr. DE97922676.


  • No labels
